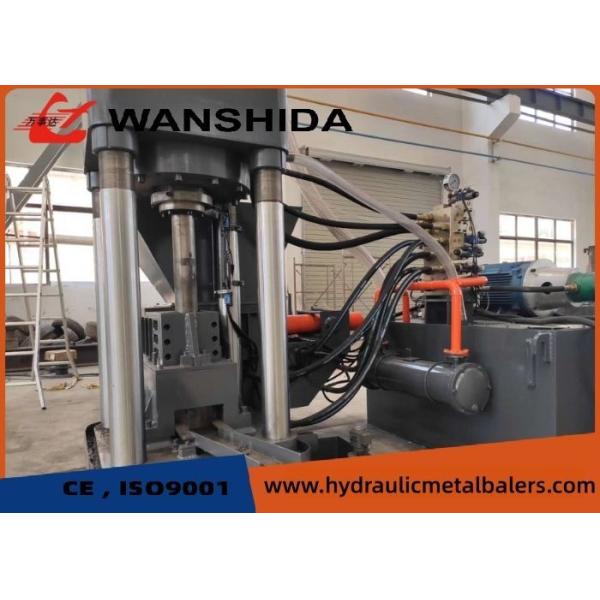

Y83-6300 Metal Briquetting Press Power 55KW For Metal Products Manufacturing
Product Overview
The Y83-6300 Briquetting Machine is a high-efficiency hydraulic forming equipment specially designed for processing cast iron chips, metal powders, and other scrap materials. With a nominal pressure of 6300 kN, it directly compresses loose metal chips into high-density briquettes of Ø200 × 300 mm under a briquette pressure of 220 MPa. The machine achieves a processing capacity of 1800–2000 kg/h, significantly improving the transportation and storage efficiency of metal chips.
Key Features
• High-Pressure Forming: 6300 kN nominal pressure with 220 MPa briquette pressure for high-density briquettes
• High Efficiency: Processes 1800–2000 kg of cast iron chips per hour with strong continuous operation capability
• Uniform Briquettes: Produces standard Ø200 × 300 mm briquettes, easy to stack and reducing oxidation
• Energy-Saving Design: 55 kW motor power for low energy consumption and economical operation
• Automated Control: Supports PLC control for automatic feeding, pressing, and discharging
• Durable Structure: Reinforced key pressure-bearing components for high-intensity metal chip compression
Product Specifications
| Model | Nominal Pressure (kN) | Briquette Size (mm) | Pressure on the bale | Power (kW) | Capacity |
| Y83-6300 | 6300 | Ø200 x 300 | 220MPa | 55 | 1800-2000kg/h Cast iron sawdust |
Application Fields
• Cast iron chip recycling in foundries
• Comprehensive utilization of metal chips in machining workshops
• Metal powder metallurgy industry
• Scrap chip briquetting and recycling in steel plants
• Non-ferrous metal processing scrap treatment
• Metal chip packaging and transportation in resource recycling
Frequently Asked Questions (FAQ)
Q1: What materials can this equipment process besides cast iron chips?
A: In addition to cast iron chips, it can process steel chips, copper chips, aluminum chips, alloy powders, and other metal scraps, with slight variations in capacity depending on material characteristics.
Q2: Is the briquette density adjustable?
A: Yes, the briquette density can be indirectly controlled by adjusting the system pressure to meet different customer requirements.
Q3: Does the equipment require a feeding system?
A: Optional screw feeders or belt conveyors can be configured to achieve automated continuous feeding.
Q4: What are the key maintenance points?
A: Regularly check hydraulic oil cleanliness, filter condition, and main cylinder seals, and ensure proper lubrication at all points.
Q5: What are the foundation requirements for installation?
A: A level and solid concrete foundation with a load-bearing capacity of at least 8 tons and a 55 kW three-phase power supply are required.
